Week 22 progress

During the past week, I completed recipes for both cam-infer-models and camera-streams-app submitted the patch, and continued reviewing PR #3 for the cam-infer-models refactoring

AGL Image Finalization

Finalizing the Recipes

The recipes flutter-camera-streams-app_git.bb and camera-infer-models_git.bb for cam-infer-models and camera-streams-app respectively, were finalized. For the flutter-camera-streams-app_git.bb the agl-app were added as an inherit in order to include a specific button inside the agl-ivi-demo-flutter image interface.

Completing the Patch

Along with the recipes, the patch file 0001-Integration-of-GSoC-camera-streams-app.patch includes the following:

  • opencv_%.bbappend and opencv_fluttercamerastreams.inc, which add DNN headers for OpenCV:
PACKAGECONFIG:append:pn-opencv = " dnn"
  • tensorflow-lite_%.bbappend and tensorflow-lite_fluttercamerastreams.inc which include the tensorflow-lite headers:
do_install:append () {
    cd ${S}
    for header in `find ./tensorflow/lite -type f -name *.h`; do
        install -D -m 0644 $header ${D}${includedir}/$header
    done
    for header in `find ./tensorflow/compiler/mlir -type f -name *.h`; do
        install -D -m 0644 $header ${D}${includedir}/$header
    done
    for header in `find ./tensorflow/core/public -type f -name *.h`; do
        install -D -m 0644 $header ${D}${includedir}/$header
    done
    cd -
    cd ${WORKDIR}/bazel/output_base/external/flatbuffers/include
    for header in `find ./flatbuffers -type f`; do
        install -D -m 0644 $header ${D}${includedir}/$header
    done
    cd -
}

My GSoC mentor, Jan-Simon assisted me in finalizing the recipes and provided a complete walkthrough for submitting the patch to Gerrit. The patch is currently under review as a Gerrit change 31262, corresponding to Jira ticket SPEC-5505.

Building and Running the image in QEMU

The following steps were executed to build and run the AGL image:

  • Apply the patch
$ cd ~/AGL/master/meta-agl-demo
$ git am ~/0001-Integration-of-GSoC-camera-streams-app.patch
  • Configure the QEMU build
$ source meta-agl/scripts/aglsetup.sh -f -m qemux86-64 -b qemux86-64 agl-demo
$ echo 'PARALLEL_MAKE = "-j16" ' >> conf/local.conf
$ echo 'BB_NUMBER_THREADS = "16" ' >> conf/local.conf
$ echo 'FLUTTER_CAMERA_STREAMS_ENABLE = "1" ' >> conf/local.conf
$ echo 'INHERIT += "buildhistory" ' >> conf/local.conf
$ echo 'BUILDHISTORY_COMMIT = "1" ' >> conf/local.conf
$ echo 'INHERIT += "rm_work" ' >> conf/local.conf
$ echo 'DL_DIR = "${TOPDIR}/downloads" ' >> conf/local.conf
  • Add the meta-tensorflow layer and start the build
$ bitbake-layers add-layer ${AGL_TOP}/master/external/meta-tensorflow
$ source agl-init-build-env
$ bitbake agl-ivi-demo-flutter
  • Run the image
$ xz -d tmp/deploy/images/qemux86-64/agl-ivi-demo-flutter-qemux86-64.rootfs-<timestamp>.wic.xz
$ runqemu ./tmp/deploy/images/qemux86-64/agl-ivi-demo-flutter-qemux86-64.rootfs-<timestamp>.qemuboot.conf kvm serialstdio slirp publicvnc
# In another terminal
$ vncviewer :0

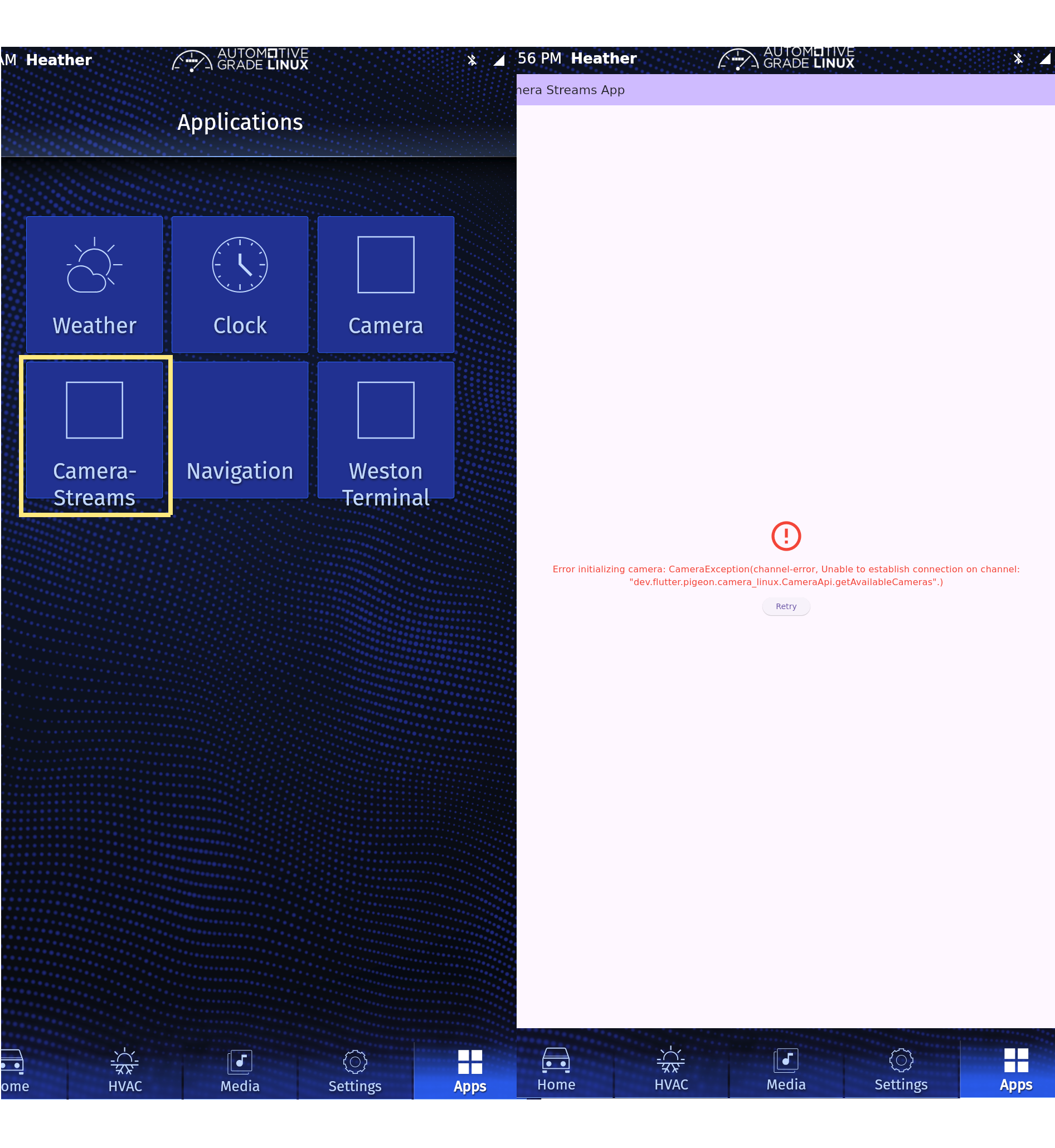

QEMU view of the AGL image

I am currently debugging the runtime error (indicated in the figure) related to camera initialization.

Testing the build for the PR

I continued testing the PR #3 and committed some changes to restore the script to its previous working state. The changes include:

  1. #c5fff9b Include the missing flatbuffer headers;
  2. #a36edc5 Add PipeWire param_changed routine and stream_events;
  3. #d375a96 Fix pw_streams properties and add pw_listeners.

Next steps

  1. Retrain the current ssd-mobilenet model.
  2. Finalize documentation and prepare the demo video.
