Week 3 progress

This week, I continued exploring the code of the camera_linux plugin and its example application camera_linux/example. The example application is directly related to:

  1. The ivi-homescreen embedder, which hosts the Flutter’s native code, Flutter engine and registers the relevant plugins
  2. The camera_pipewire plugin, which sets up and manages the PipeWire graph for the camera nodes and streams

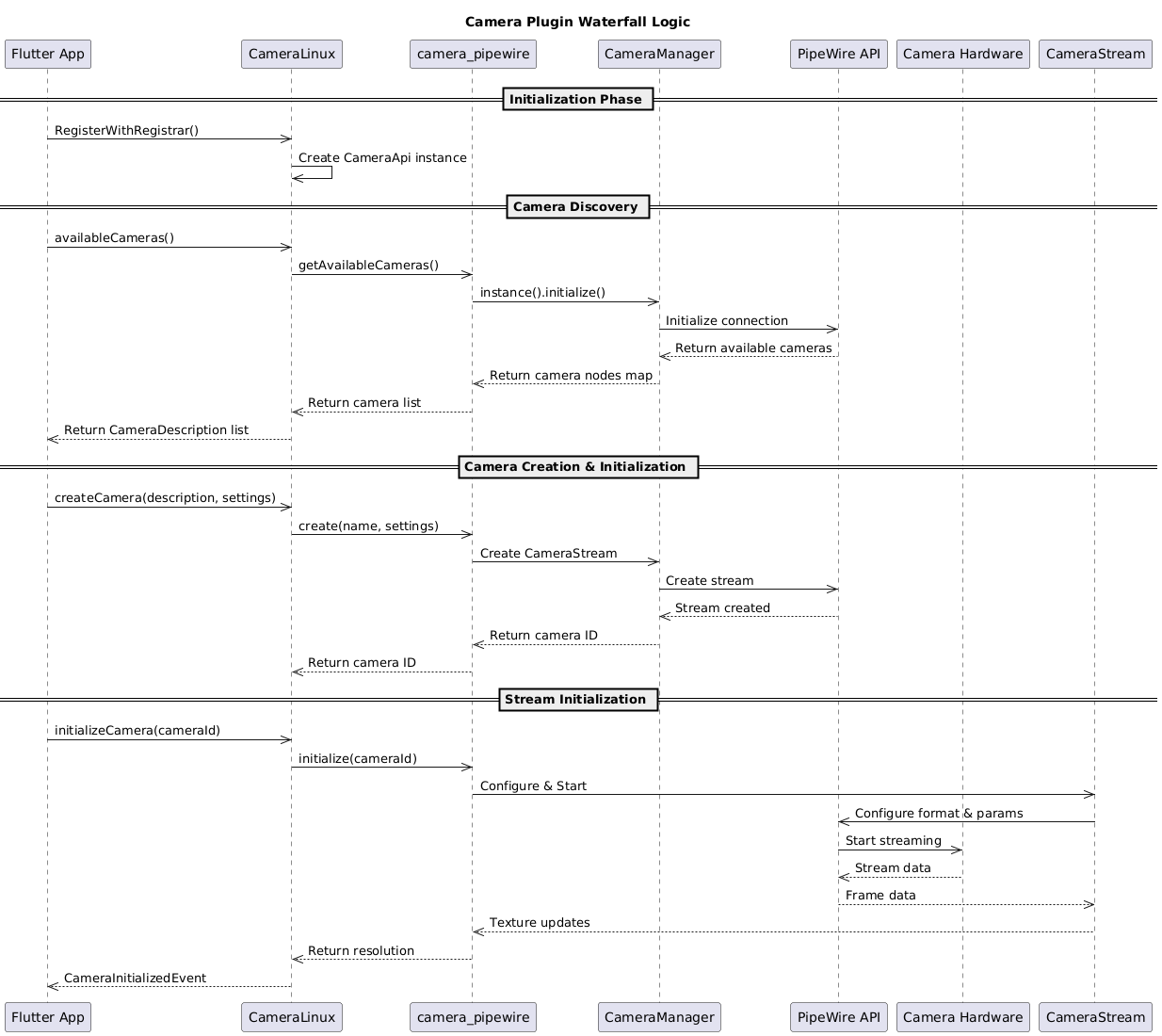

In order to get deeper insights of the complete pipeline, I created the following UML diagram to illustrate the Camera Plugin logic and its interconnections with different elements: PipeWire Connections

As a first step in building the complete application, I began writing a simple PipeWire node where it connects the Integrated_webcam_HD camera source to a sink node, as a first step of the complete application. I had a look at the Flutter documentation, which includes the platform channels and packages’ metadata of pubspec.

Next steps

  1. Develop a boilerplate PipeWire application with multiple sources that could be manually rewired using qpwgraph
  2. Integrate a Yolo detection module inside the PipeWire application
